Specifications

YYW-5000A,

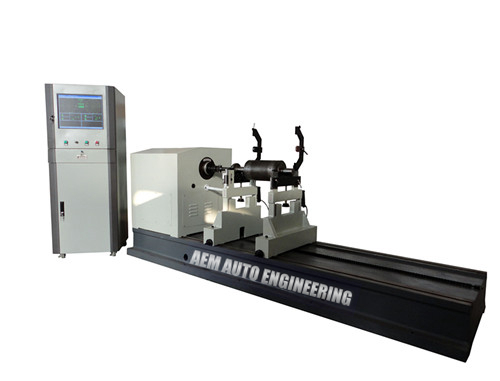

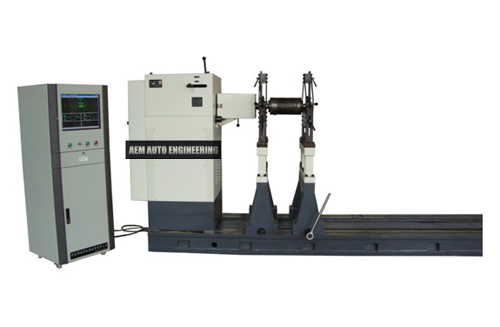

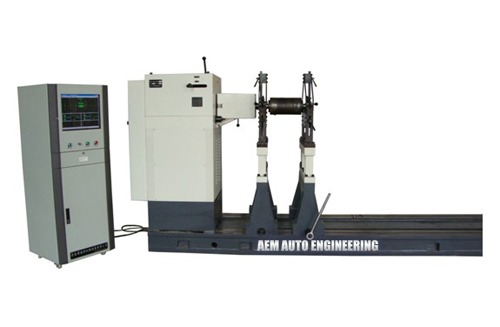

5000Kg Universal Joint Drive Balancing Machine
1,high precision

2,high quality
3,high efficiency

4,low failure rate

Production Description

• Special designed brackets can effectively transmit mechanical force
• The durable and reliable sensor possesses high sensitivity
• The permanent calibration brings high accuracy
• Driven by universal coupling,transmit the power steadily
• Applicable to rotors which can't be driven by belt or need large power
• Advanced electrical measuring system and friendly man-machine interface

Range of Application

This balancing machine is mainly used in checking the balance of rotatable bodies such as good-sized motors, spindles of machine tools, blower, centrifuges, generator rotor , clinopodiums, pump impeller. drying cylinder. ceramic machinery,rollers,rubber sticks,etc.. Driven by gear box universal coupling , equipped with Variable speed motor to drive .Which ensures high quality balancing and precision. With wide speed range,large driving power, high precision and easy operation etc

Special Features

The measuring unit employs GB-2000 microcomputer balance measurement system is a system of top function and precision. It can be applied in all kinds of single/double plate and hard/soft bearing machines, and can be connected with different velocity and pressure sensors easily. The unit adopts industrial computer made in Yanhua Industry Co, which equiped with 17-inch LCD screen and Windows XP Operating System. Featuring with high running speed and reliability strong dustproof and shake proof ability, it is applicable to various industrial environments.

1) Stepless speed regulation

2) Frequency conversion

 Production Parameters
