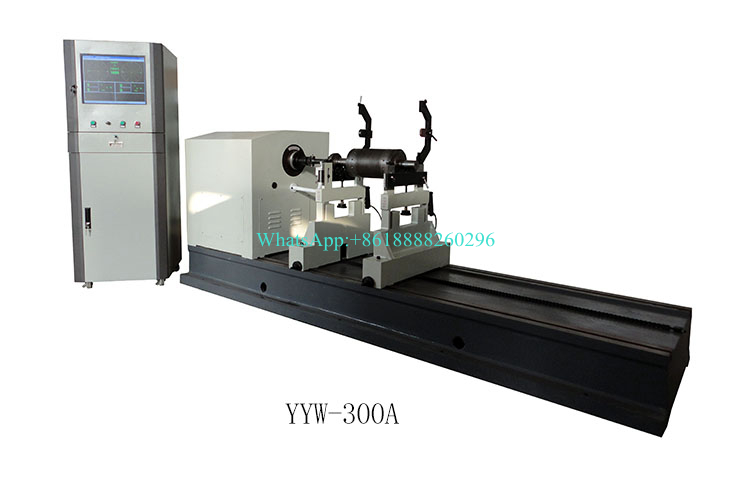

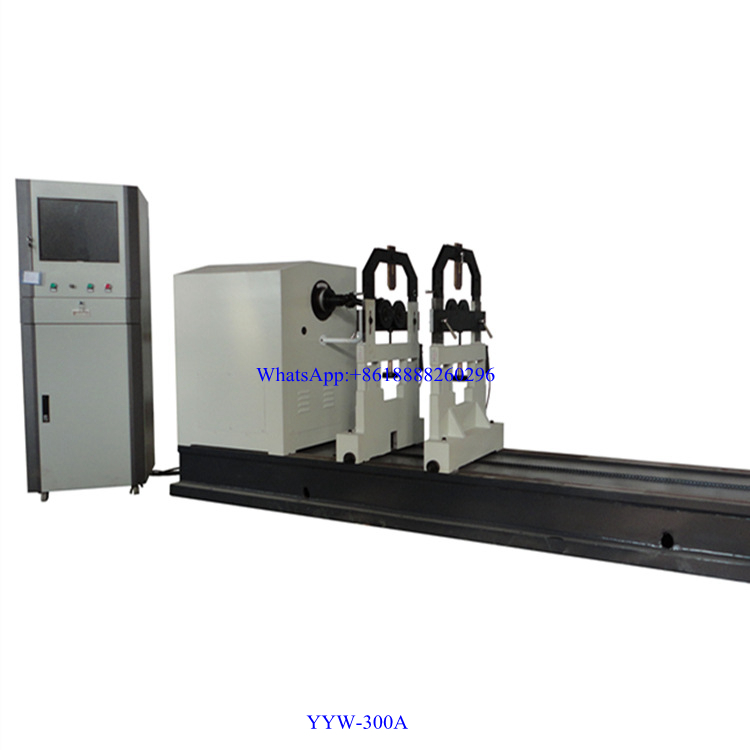

1. YYW series product introduction

The YYW series is a universal hard-supported horizontal double-sided dynamic balancing machine driven by a universal joint. The equipment model covers a measurement range from a few kilograms to more than 50 tons. This series of equipment is suitable for dynamic balance measurement of workpieces with regular or irregular shapes, smooth surface of the parts or various parts with knife on the surface of the workpiece, fan impellers and centrifuge drums and other workpieces with large moment of inertia and air damping. It is widely used in Motor, generator, fan, engine, agricultural machinery, textile machinery, chemical industry, woodworking machinery, papermaking machinery and other industries, can perform balance measurement on single-sided, double-sided and multiple correction surfaces, suitable for shafts, discs and outside the center of gravity Stretch the rotor. It has the advantages of high efficiency, accurate accuracy, intuitive display and reliable quality.

2. Measuring system

(1). Industrial control computer, Windows operating platform, 19-inch LCD monitor.

(2). Equipped with a balance measurement system. The universal software functions cover all the functions of the mainstream balancing machine software. The operation adopts a menu structure and text prompts for operation steps. The special software includes: various automatic balancing machine software, software with angle tracking function, and automatic Software for positioning function, software for multi-axis joint calibration of transmission shafts, etc.

(3). Powerful measurement system performance: calibrate any workpiece, start measurement with a wide measuring speed range of 80 rpm, measurement speed block, stable imbalance amplitude and phase, high deduplication rate and separation ratio, and high sensitivity.

(4). The software comes with a permissible imbalance calculator. The operator only needs to enter the permissible vibration accuracy level, quality, working speed, and radius of the workpiece, and click on the calculation to get the allowable remaining imbalance of the workpiece in grams.

3. Mechanical part and control

(1) The swing drive and the bed are made of castings, with sufficient rigidity and stability; the swing drive has strong static pressure resistance, and can generally be overloaded by more than 20% under the premise of sufficient equipment drive capability

(2) The roller on the balancer is made of bearing steel, and the overall salt bath quenching hardness has reached HRC55 or higher; after the roller bearing surface is ground, the roller bearing surface is polished and the radial runout is small, and the precision roller bearing is used to make the workpiece run more smoothly and interfere with the measurement signal Lower

(3) The universal joint adopts precision machining, and has been concentrically corrected and balanced. This greatly reduces the influence of the universal joint on the balance of the workpiece during balancing, and ensures the accuracy of the balance of the workpiece.

(4) The swing frame can move along the bed and stop at any part above the bed, so the equipment can balance workpieces of any length between the longest and shortest.

(5) Synchronous rotation scale marks are installed on the universal coupling connecting plate, which is convenient for finding the unbalanced angle.

(6) The quality of the equipment is reliable. The frequency conversion speed regulation system is adopted. The soft start and stop of the motor have little impact on the equipment, which extends the service life of the equipment. The equipment can work continuously, maintenance is simple and convenient.

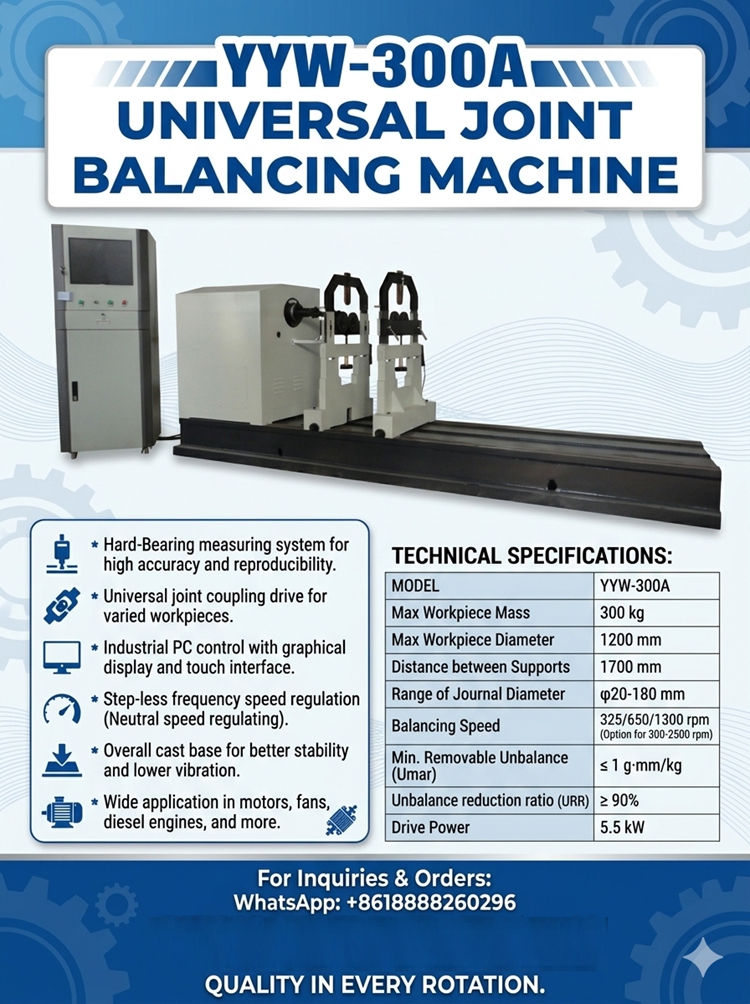

4.Tachnical Parameter:
