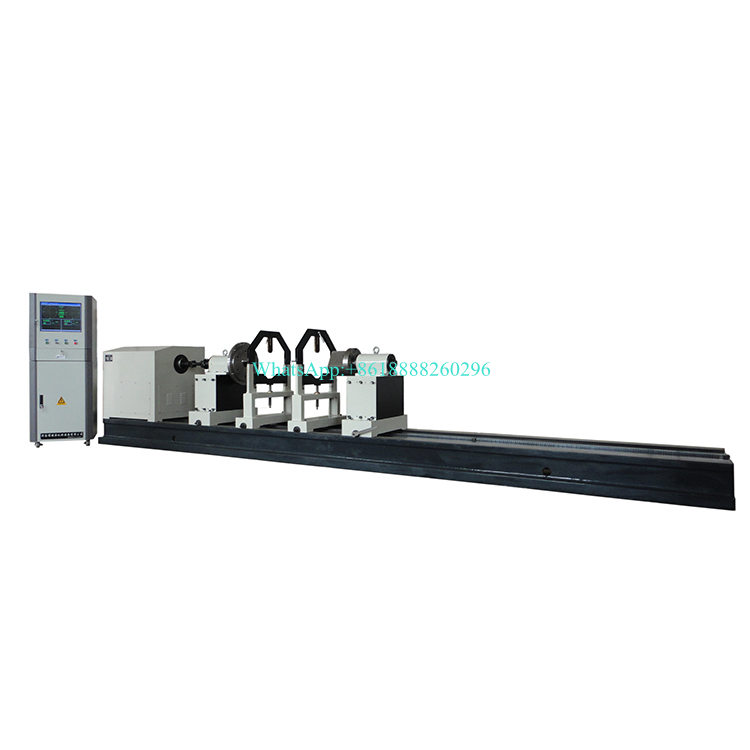

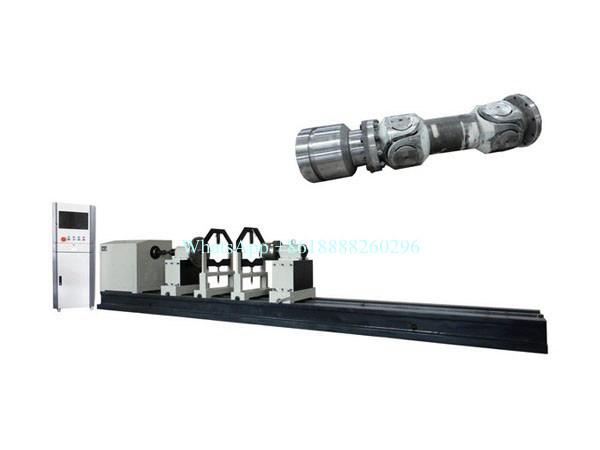

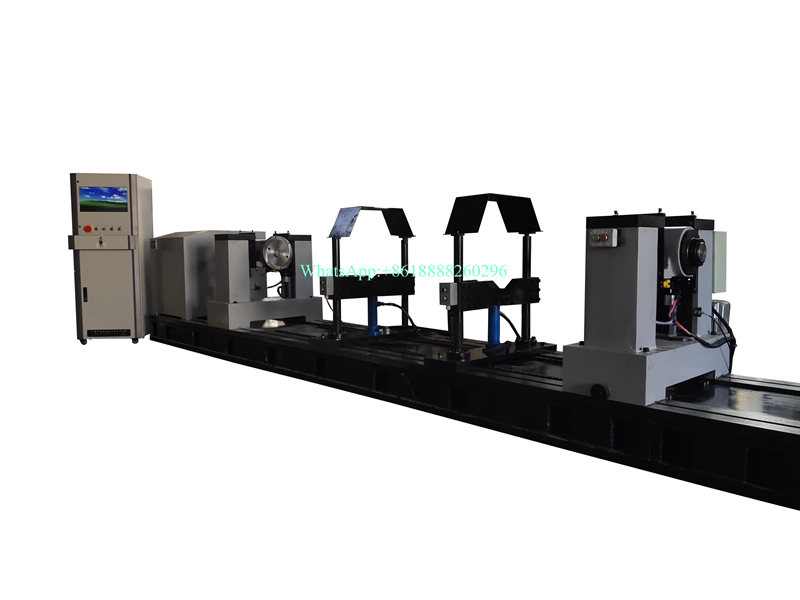

The heavy-duty driveshaft balancer is a special balancing machine, which is specially used to balance the heavy-duty driveshaft used in ships, rolling equipment, etc., and is balanced by replacing the fixture of the workpiece to adapt to various connection methods. The swing frame adopts a hard support or soft support structure. Provide customized heavy-duty drive shaft balancing machine service within 3 tons.
2. Measuring system
★ Industrial control computer, 19-inch LCD monitor (touch screen can be configured according to customer needs), Windows operating platform
★ Equipped with the company's self-developed universal balance measurement system. The general software functions cover all the functions of the domestic mainstream balancing machine software, and the operation adopts the Chinese menu structure and the text prompt of the operation steps
★ Powerful performance of the measuring system: calibration of any workpiece, wide measurement speed range of 80 rpm to start the measurement, measurement speed block, unbalance amplitude and phase stability, high deduplication rate and separation ratio, high sensitivity
★ The software comes with a permissible unbalance calculator, and the operator only needs to enter the allowable vibration accuracy level, mass, working speed, and radius of the workpiece to calculate the number of grams of allowable remaining unbalance of the workpiece
★ The software is completely developed in-house, and software functions can be modified or added according to customer requirements (e.g. scanning the QR code to add the identity name of the workpiece to the measurement results for future quality control)
3. Mechanical part and control
★ Hard support or soft support swing and cast bed, better equipment stability, wide range of measuring speed
★ The front and rear spindle structure of the balancing machine provides customized connection fixture services
★ The swing frame can be moved along the bed and can be parked anywhere above the bed, so the machine can balance workpieces of any length within the effective length range given by the parameters.
★ Synchronous rotation scale marking is installed to facilitate the finding of unbalance angles.
★ The frequency conversion speed regulation system is adopted, and the starting time of the equipment motor can be adjusted according to the need, which is convenient to use
4. Technical Parameter
|
Model |
YDW-2000A |
|
Weight of drive shaft(kg) |
≤2000 |
|
Drive shaft correction method |
Single section double-sided correction |
|
Pendulum structure |
Hard bearing support |
|
Length of workpiece(mm) |
≤3500 |
|
Bed frame length(mm) |
5300 |
|
Balancing Speed(r/min) |
800-1000 |
|
Min. remaining unbalance |
≤20 gmm/kg |
|
Unbalance reduction rate (%) |
≥85% |
|
Motor Power |
11 KW |
