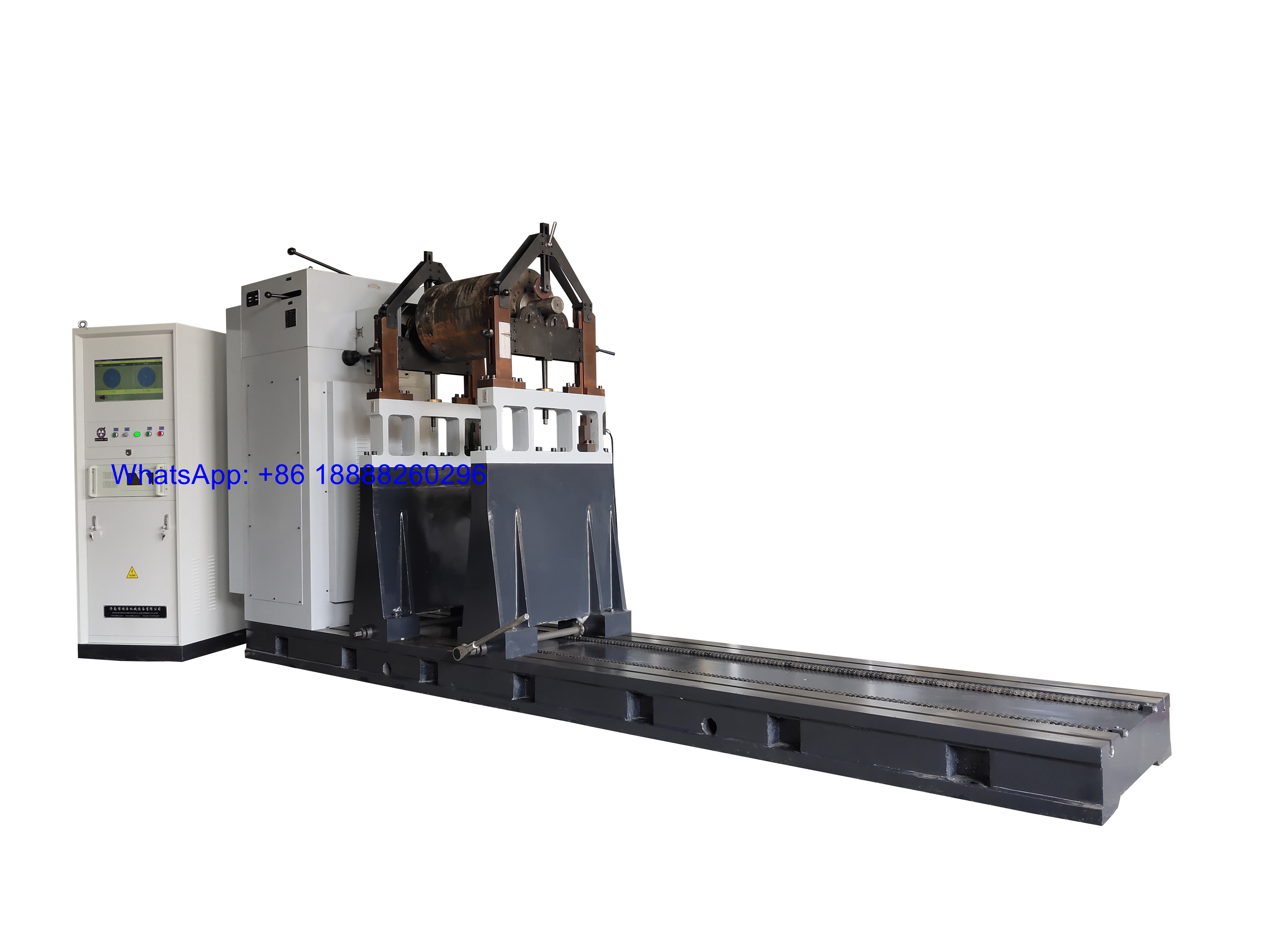

Universal Joint Drive Dynamic Balancing Machines

The Universal Joint (U-Joint) Drive balancing machine is designed for heavy-duty, high-torque applications. Unlike belt-drive systems, which rely on friction, the U-Joint drive uses a mechanical coupling (cardan shaft) to connect the motor directly to the rotor.

1. How It Works

• Mechanical Linkage: A universal joint drive shaft (cardan shaft) connects the motor output to the end of the workpiece. This provides a rigid, positive transmission of power.

• Positive Torque: Because the connection is mechanical, the machine can transmit significantly higher torque compared to a belt-drive system. It is designed to overcome high inertia during acceleration and maintain stable speed during measurement.

• Compensation Mechanism: High-quality U-Joint drive machines feature specialized compensation systems to account for the residual imbalance of the U-Joint coupling itself, ensuring that the machine's own drive components do not interfere with the rotor's measurement accuracy.

2. Key Advantages

• High Torque Capacity: Ideal for heavy rotors that have significant start-up resistance or inertia (e.g., large crankshafts, massive industrial rollers).

• Speed Stability: It ensures a constant, stable rotational speed, which is critical for measuring larger, heavier workpieces where belt slippage would be unacceptable.

• Versatility in Rotor Shape: It is the preferred choice for rotors that have non-cylindrical surfaces, such as those with flanges, shaft extensions, or irregular shapes that cannot accommodate a belt.

• Robustness: These machines are built to handle the heavy physical loads and shock-loading associated with large industrial components.

3. Typical Applications (YYW Series)

      U-Joint drive machines (such as your YYW series) are typically used for:

• Automotive & Truck Parts: Crankshafts, drive shafts (propeller shafts), and heavy-duty transmission components.

• Large Industrial Rotors: Heavy blower impellers, large electric motor rotors, and power generation turbine components.

• Heavy Machinery: Industrial centrifugal pumps, high-capacity rollers for paper/steel mills, and heavy agitators.

4. Technical Comparison: When to Choose U-Joint vs. Belt Drive
