Function:
(1) Testing Injector Oil Return Volume
(2) Testing Injector Electron Magnetic Valve
(3) Testing Idling Pilot Injection,main inject injector oil volume
Parameter of Injector Tester Instrument:
|
No. |
Name |
Description |
|
1 |

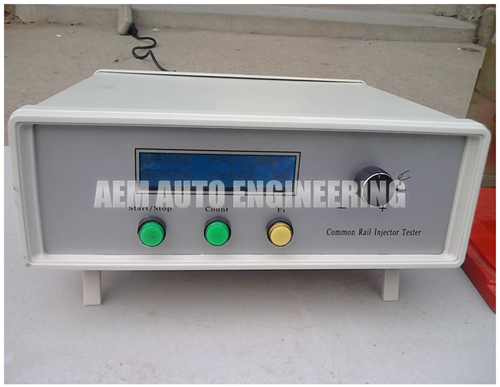

Host |
LED Display |
|
2 |
Power supply |
220V DC supply |
|
3 |
The main test line |
For injector line connection |
|
4 |

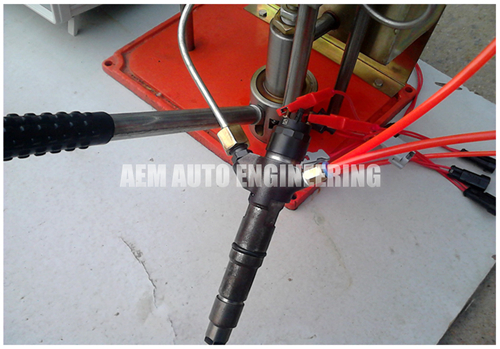

Universal injector clip |
2 sets for testing cylinder injector |
|
5 |
Dedicated injector cable |
6 sets, Suitable for BOSCH, DENSO, DELPHI |
|
6 |
Injector Host Checker |
Injector is fixed parity host more convenient to use on the bench |
|
7 |
Connecting tubing |
3 sets |
|
8 |
Validator Leverage |
1 set |
|
9 |
Product Manual |
1pcs |

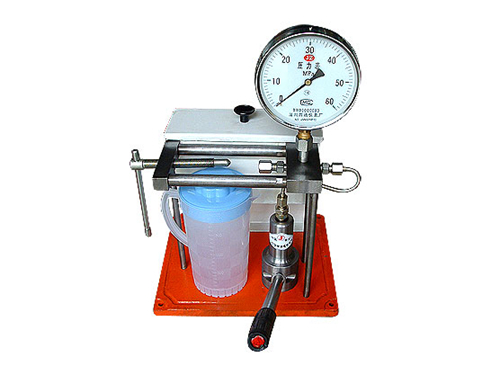

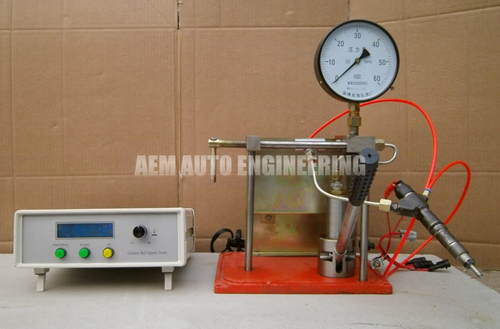

Parameter of PJ-60 Injector Tester:
Max. test pressure : 40 mpa
Out dimension: 32 0×300×500
Net weight: 20kg
Pressure gauge test range: 0-60mpa
