★Industrial control computer, 19-inch LCD monitor, Windows operating platform.
★Equipped with the company's balance measurement system. The general software functions fully cover all the functions of the domestic mainstream balancing machine software, with text prompts for operating steps; special software includes: all kinds of automatic balancing machine software, software with angle function, software with automatic positioning function, transmission Axis multi-axis joint calibration software, etc.
★Strong performance of the measurement system: calibration of any workpiece, wide measuring speed range of 80 rpm to start the measurement, measuring speed block, stable imbalance amplitude and phase, high deweighting rate and separation ratio, high sensitivity.
★The software comes with an allowable imbalance calculator. The operator only needs to input the allowable vibration accuracy level, quality, working speed, and radius of the workpiece and click on the calculation to obtain the allowable remaining imbalance of the workpiece in grams.
★The software can be modified or added according to customer requirements

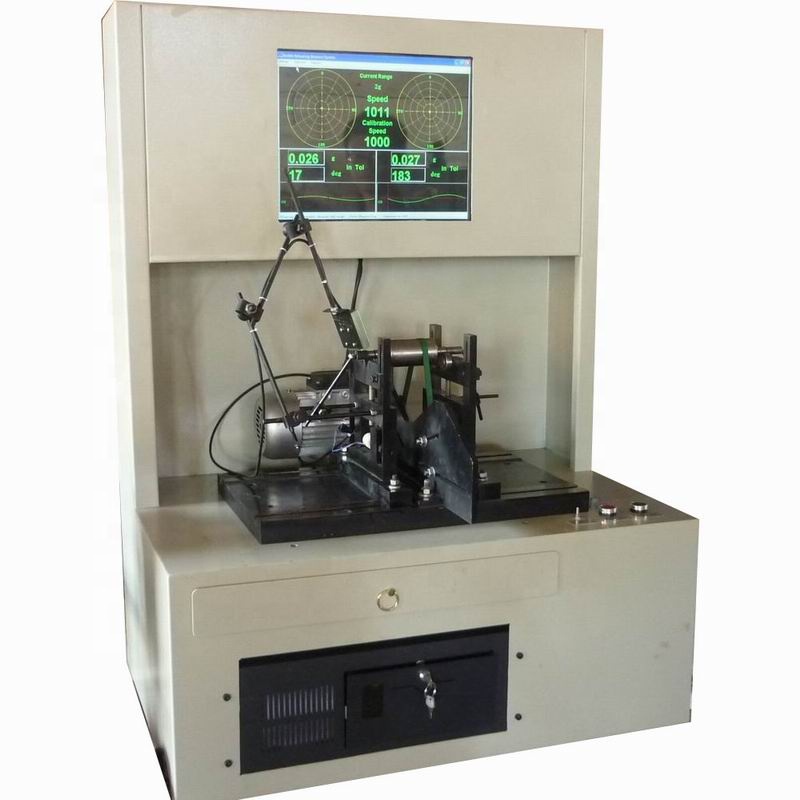

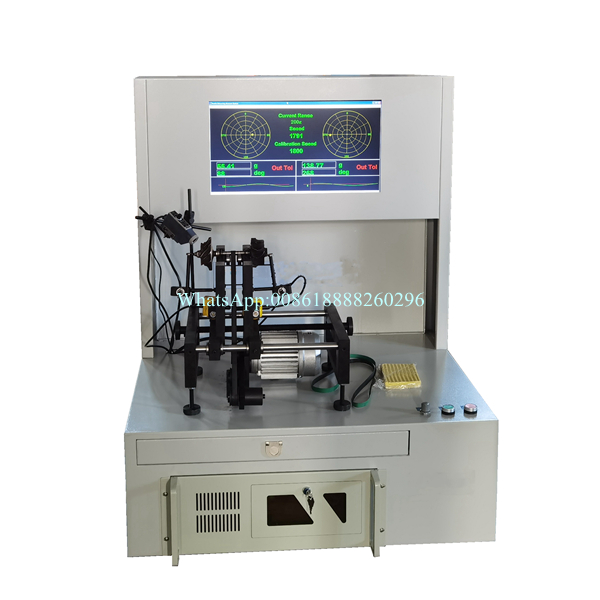

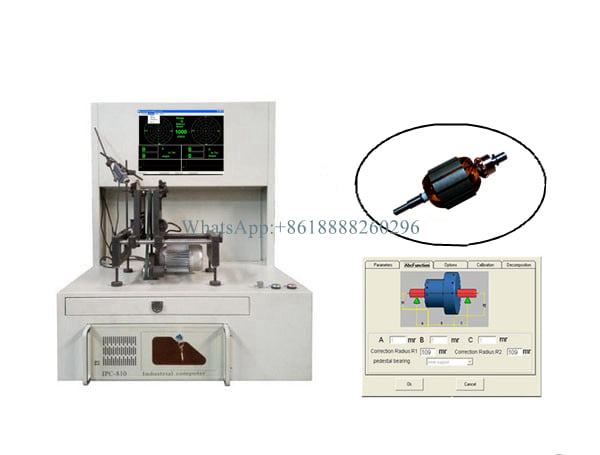

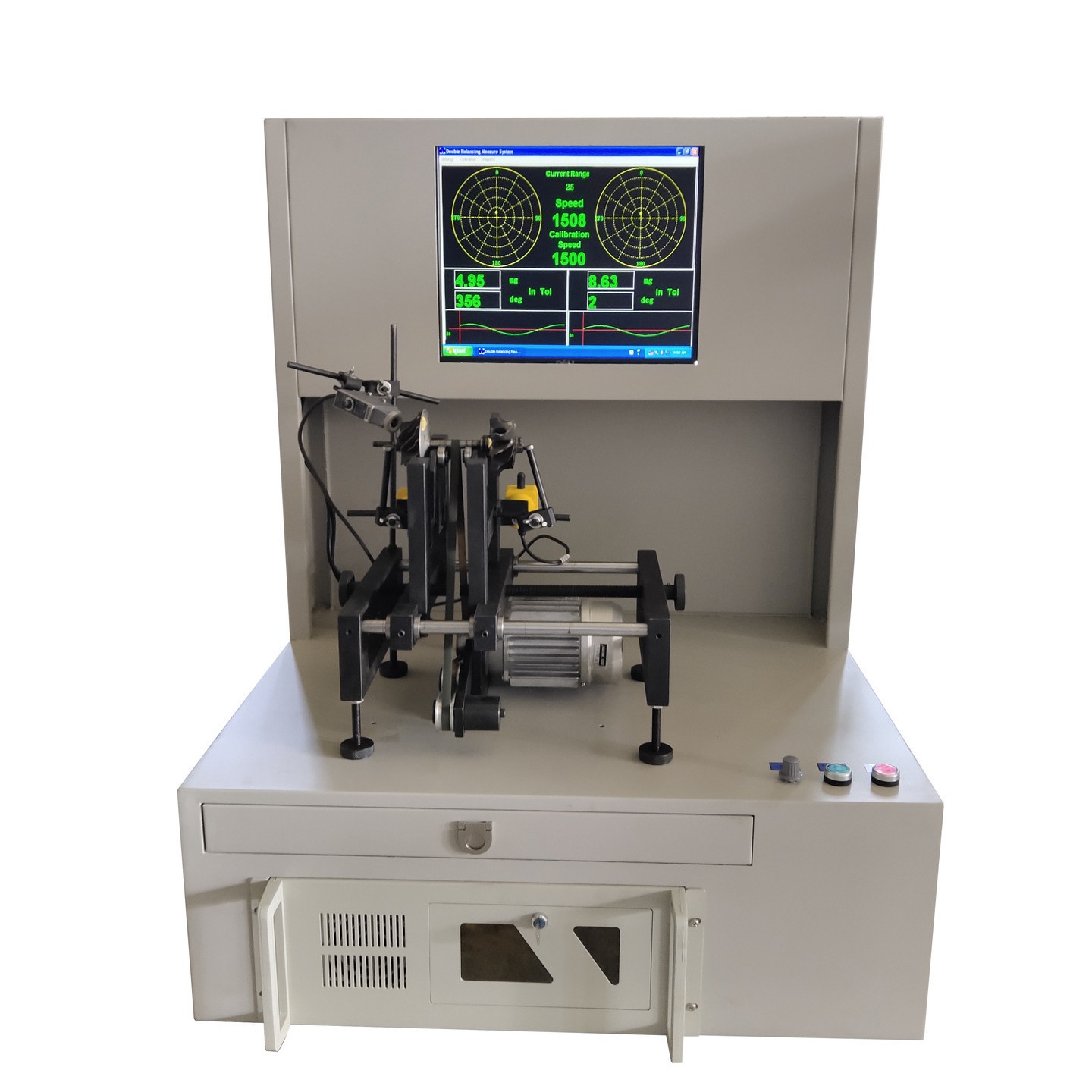

Model: RYQ-3A
Mass scope of workpiece (kg): 0.1-3
Biggest diameter workpiece (mm): 350
Two span of supports (mm): 30-450
With a diameter circle in drag (mm): ≤150
Trunnion support (mm): 4-17
Balancing speed( r/min): 400-3000 when the diameter of the superior part is 50mm
Min. achievable residual unbalance amount: ≤0.5gmm/kg
Unbalance reduction ratio (%): ≥90%
Motor power: 0.09KW
Mode of speed regulation: Variable frequency speed regulation
Drive type: Belt drive
Power supply: Single phase AC 220V 50Hz/60Hz
