High Pressure Common Rail Injection Pump Test Bench

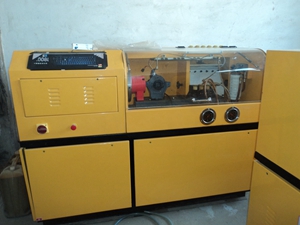

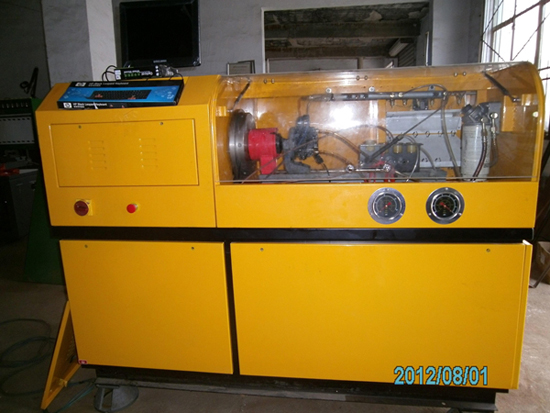

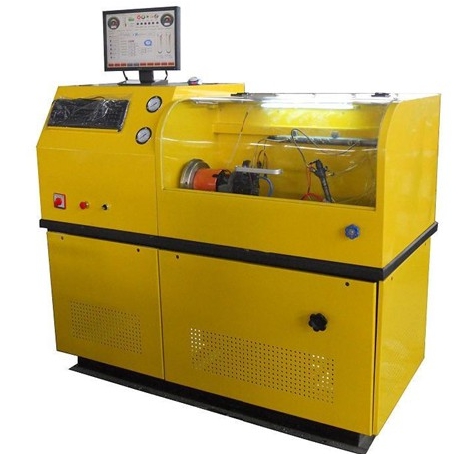

The high-pressure common rail system test bench is the latest equipment we researched and produced by referring to the actual condition of domestic existing common rail fuel injection system. The equipment’s rail pressure range is (0~1600bar)., which is provided by BOSCH common rail fuel injection pump. The computer control system can accomplish real-time measurement and adjustment for common rail pressure. It can conduct detection and debugging on rail injectors, fuel injection pumps and common rail pipes produced by BOSCH, SIEMENS, DELPHI and DENSO.

Description

Common Rail Injection Pump Test Bench

Characteristics:

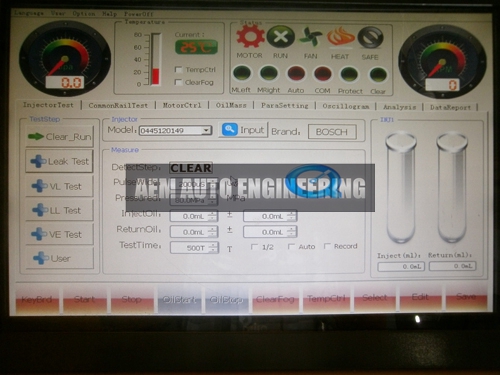

1. Real-time control by industrial computer with windows system, touch screen operating system (or mouse).

2. Fuel mass is measured by sensor and displayed on 19” LENOVO display.

3. Adopts BOSCH high-pressure common rail injection pump to generate 0~1600 bar pressure.

4. Real-time measure and control of rail pressure, with overpressure protection function.

5. The pulse width and frequency of injector’s driving signal are adjustable.

6. Injection time(s) of injector can be set at will.

7. The date of more than 700 kinds BOSCH and more than 10 kinds DENSO are searchable and savable.

8. Short-circuit protection.

9. Accurate measurement, easy operation, low noise and energy-efficient.

10. The fuel temperature control system adopts 2P presser force refrigeration

Test function

1. Detection on sealing performance of common rail fuel injector.

2. Detection on magnetic valve performance of common rail fuel injector.

3. Observation for atomization of common rail fuel injector.

4. Detection of uniformity of fuel quantity of common rail fuel injector.

5. Test on starting quantity of fuel of high-pressure common rail injector.

6. Test on full-load quantity of fuel of common rail injector.

7. Test on idling quantity of fuel of common rail injector.

8. Test on pre-injection of high-pressure common rail injector.

9. Medium speed testing of common rail oil injector

10. Test on user-defined quantity of fuel of Test on pre-injection of high-pressure common rail injector.

11. Testing of Piezoelectric ceramic oil injector
12.Detection on sealing performance of common rail pipe

13. Inspection on safety valve performance of common rail pipe

14. Inspection on pressure sensor performance of common rail pipe

15. Detection on sealing performance of common rail pump

16. Detection on common rail pressure of common rail pump

17. Detection on fuel supply of common rail pump

18. Flow rate testing of common rail oil injector

19. Electrical HPO common rail pump testing

20. It can test pump nozzle and unit pump.

21. Test the CAT medium-pressure common rail (optional)

Technical parameter

1. Main motor power: 11KW,15KW,

2. Range of speed of test bench: 0～4000RPM

3. Test bench steering: Forward/reverse

4. Testing frequency of common rail fuel injector: 0～100HZ

5. Pulse width: 0.01～30ms

6. Pressure range: 0～200Mpa

7. Fuel supply pressure: 0～1.6Mpa

8. Fuel suction pressure : -0.1～0Mpa

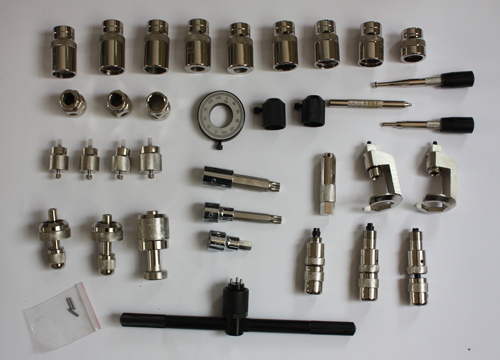

Common Rail Pump and Injector Dismounting Tools for machine
