Fan Impeller Balancing

1. Challenges in Balancing Fan Impellers

• Aerodynamic Sensitivity: Fan blades are prone to distortion or material buildup (dust, grease, or corrosion) during operation, which changes the balance over time.


• Large Diameter vs. Low Rigidity: Many fan impellers are lightweight but wide. If the structure is not sufficiently rigid, it can deform during high-speed rotation, making the balance unstable.


• Overhang Weight: Fans are often mounted on the ends of motor shafts (overhung), meaning any residual imbalance at the impeller translates into significant stress on the motor's front bearing.



2. Balancing Methods for Fan Impellers

• Vertical Balancing (The Preferred Choice for Disks):


  • Fan impellers are typically disk-shaped with a short axial length.


  • A Vertical Balancing Machine is usually the most efficient choice because it allows the operator to place the fan flat onto a mandrel, providing excellent stability and easy access for correction.


  • Automatic Correction: Many vertical fan balancing machines feature built-in drilling or milling stations that allow for "measure-and-correct" operations in a single cycle.


• Horizontal Balancing (For Long/Large Blowers):


  • If the fan is part of a very long rotor assembly (e.g., a large centrifugal blower shaft), a Horizontal Balancing Machine (YYQ or YYW series) is necessary to balance the entire rotating assembly as a single unit.



3. Correction Techniques

• Material Removal (Drilling/Milling): Often performed on the shroud (side plates) of the impeller or the central hub.

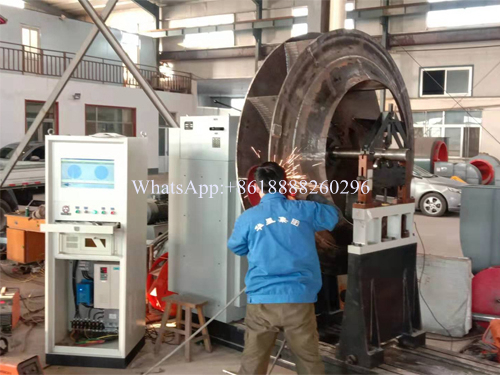

• Adding Counterweights: For heavy industrial fans, it is common to weld flat steel weights onto the shroud or use bolt-on balancing clips.


• Note on Precision: Fan impellers typically fall under ISO G6.3 (General Industrial) to G2.5 (High-Performance/High-Speed) standards.



4. Technical Strategy for AEM Balancing Machine Clients

1. Productivity: "Our vertical machines allow for rapid loading and automatic correction, significantly reducing your cycle time for high-volume fan production."


2. Structural Integrity: "Our machines provide stable support to prevent workpiece deformation, ensuring that the balancing result remains accurate even for large-diameter impellers."


3. Flexibility: "Whether you are producing small cooling fans or massive industrial blowers, our range covers the precise mandrels and fixtures you need to maintain balance consistency."
