Function
1. Measuring each cylinder’s injected oil quantity at various rotation speeds;
2. Checking each cylinder’s injection time statically;
3. Checking the mechanical speed governor;
4. Checking the electromagnetic valve of distribution pumps;
5. Checking the pneumatic speed governor’s performance;
6. Checking the pressure compensator’s performance;
7. Measuring the returned oil quantity of distribution pumps;
8. Measuring the internal pressure of the distribution pump body;
9. Checking the pneumatic speed governor’ s vacuum performance;
10. Measuring rack travel;
11. Checking the sealing of fuel injection pump body.
Technical Parameters
1. Adjustable rotation speed range: 0～4000RPM
2. Double series of graduates: 45cc and 1500cc (optional)
3. Volume of oil tank: 60L
4. Temperature stabilization: 40±2℃
5. Test oil filtering unit: 5μ
6. DC supply: 12V/24V
7. Fuel feed pressure: low: 0~0.4MPa, high: 0~4Mpa
8. Air pressure: 0~0.3MPa,
9. 3-phase power supply: 380V/50Hz or according to requirements
10. Flywheel inertia’s moment: 0.8KG·M2
11. Center height:125MM
12. Output power: 7.5KW, 11KW, 15KW or according to requirements
13. Overall dimensions(MM): 2000×760×1870 or according to requirements

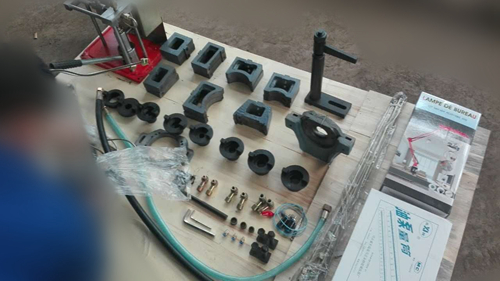

Accessories for Diesel Fuel Injection Pump Test Bench
