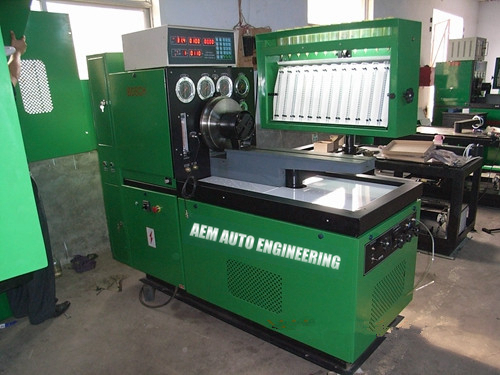

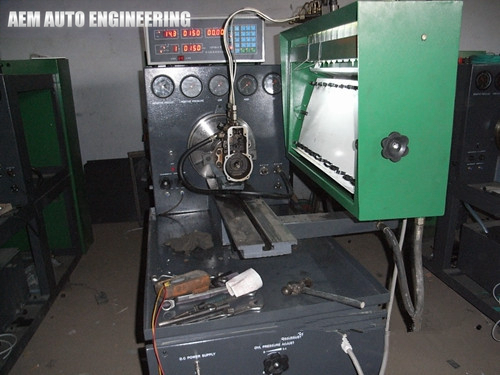

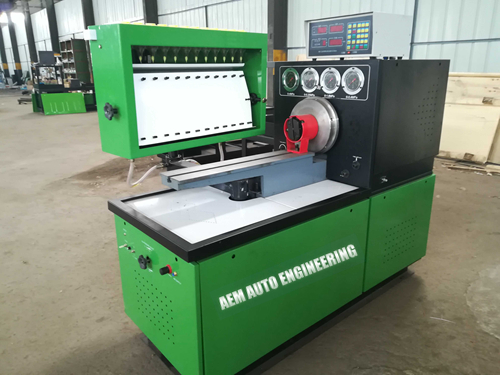

12PSB Digital Instrument Diesel Fuel Injection Pump Test Bench
12PSB Digital Instrument Diesel Fuel Injection Pump Test Bench adopts advanced Bosch SCM Micromputer control technology and high reliability anti-disturbance technology,has stable and reliable work performance.With Chinese-English menu,it can show all debugging interface.And this machine has both manual and automatic operation system.

Contact: *
Company: MSN/skype:
Subject:
Tel: Fax:
E-mail: * Website:
Content: *
Code: *(marked *should be filled)

Description
12PSB Digital Instrument Diesel Fuel Injection Pump Test Bench




Characteristics


1. Changing frequency changing rotation speed;
2. Small fall of  rotation speed and large output torque;

3. High measurement precision;

4. The functions of overvoltage,overload and short circuit protection

5. Ten kinds of rotation speeds preseting;

6. Constant temperature controlled;

7. Ultra low noise

8. Operating position:arbitrary side of the two work sides of the test stand;

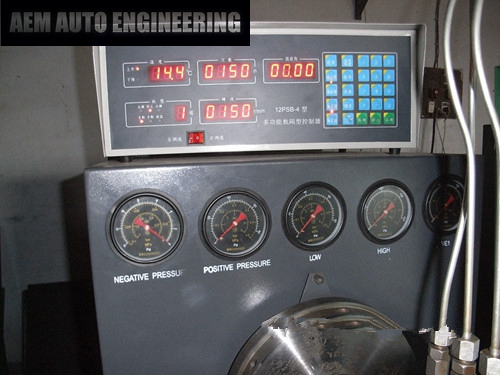

9. Speed, count, temperature through the digital display table

10. Built-in air resource


Function


1. Measurement of each cylinder’s delivery at various rotation speeds;

2. Checking of each cylinder’s injection time with static state;

3. Checking of the mechanical speed governors;

4. Checking of the electricmagnetic valve of distributor pumps;

5. Checking of the pneumatic speed governors’oisutuve oressyre performance;

6. Checking of the pressure compensators(LDA)

7. Measurement of the reflux delivery of distributor pumps;

8. Measurement of the internal pressure of the distributor pumps body;

9. Measurement of rack travel

10. Checking of the sealing of fuel injection pump body.


Tecnnical Parameters


1. Adjustable rotation speed range:0
4000RPM

2. Double series of graduates:45cc1500cc

3. Volume of oil tank:60L

4. Temperature stabilization: 40±2℃

5. Test oil filtering unit: 5μ

6. D.C.Supply:12V/24V

7. Feed pressure:low: 00.4MPa,high: 04Mpa

8. Air pressure: +00.3MPa,

9. 3-phase power supply:380V/50Hz or on request

10. Flywheel inertia’s moment: 0.8KG·M2

11. Center height:125MM

12. Output power: 7.5KW,11KW,15KW or on request

13. Overall dimensions(MM): 2360×960×1870 or on request

14. Net weight(KG):about 900

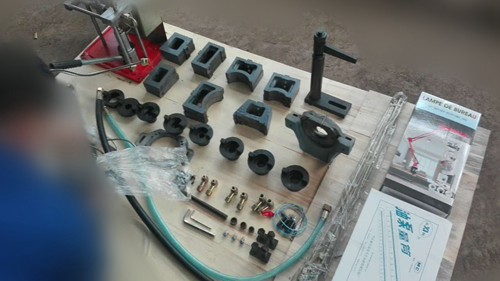

Accessories for Diesel Fuel Injection Pump Test Bench
