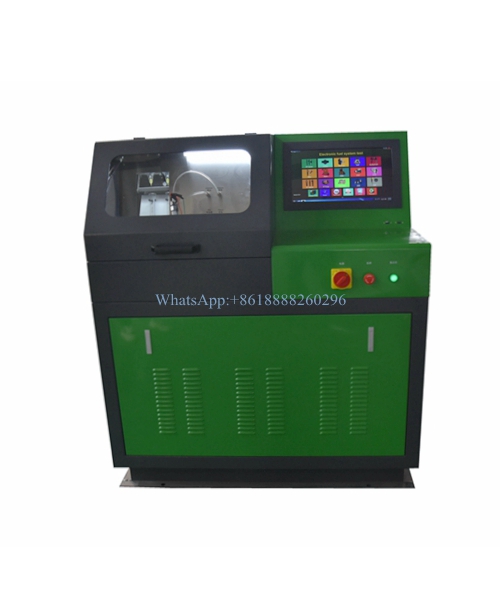

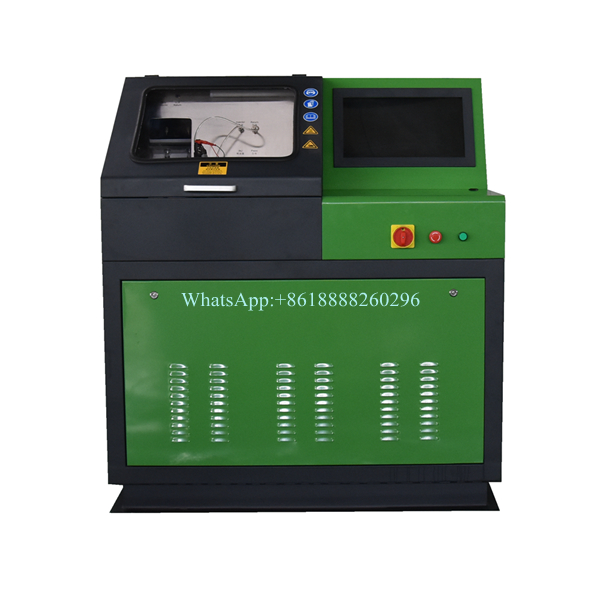

I. Introduce:
1. The fuel injection volume and return volume are measured by glass measuring cups and imported flow sensors, with high accuracy and strong automation.
2. Detect the fuel injection volume and return volume of the common rail injector under working conditions such as air tightness, full load, medium speed, idle speed, and pre-injection; test the opening pressure, air tightness, and atomization quality of the common rail injector , And high pressure cleaning of common rail injector.
3. It can detect common rail injectors such as Bosch, Denso, Delphi, Siemens, and piezoelectric injectors.
4. The whole machine has low noise, the host adopts frequency conversion speed regulation, speed prefabrication, low noise, no impact.
5. Advanced control, one-key selection, full-process detection.
6. Built-in more than 3,000 kinds of injector standard parameters.
7. The main engine is driven by frequency conversion, and the BOSCH CP3 common rail pump provides oil; and the Bosch CP3 common rail pump provides 2100Bar rail pressure.
8. It can test the response time of the injector, automatically generate the Bosch QR code. (Optional)
9. Open data management, users can add the fuel injection volume of the fuel injector by themselves under the guidance, which is especially suitable for the calibration of the standard fuel volume of the new fuel injector.
10. The bench is made of high-quality steel pipe welded and polished, which is durable. The surface of the bench is treated with high-grade automobile paint, which is beautiful and generous.
11. Complete safety protection measures. Adopt acrylic transparent protective cover, which is convenient to observe the various working conditions of the fuel injector.

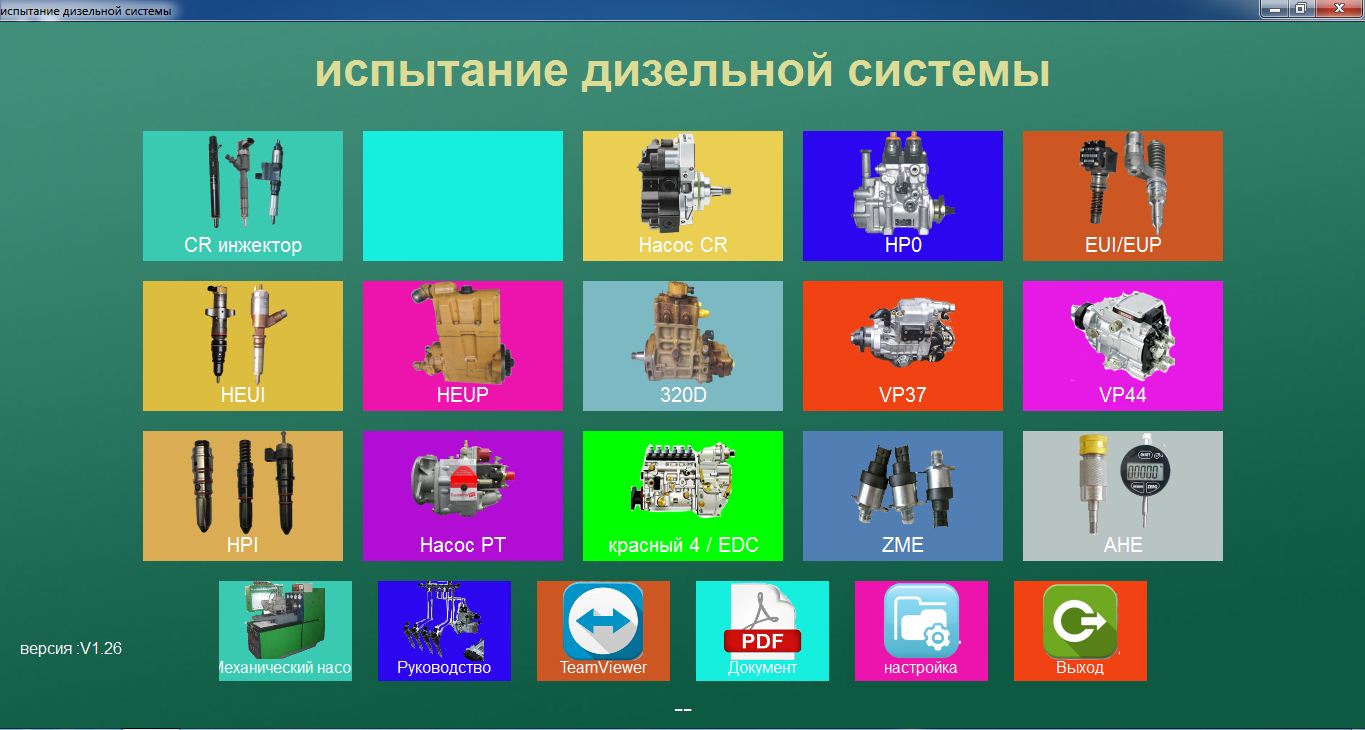

12. Adopt 19-inch high-definition liquid crystal display to display the measurement results in real time.
II. Technical parameter:
1. Pressure display accuracy: ±0.1 MPa;
2. Host power supply: 380V; 50HZ/220V.
Motor power: 4Kw
Inverter power: 5.5Kw
3. Spindle speed range: (rev/min) 0-4000 revolutions.
4. Spindle rotation: forward/reverse
5. The number of oil measuring counts (times): 0-1000.
6. Volume of fuel tank: (liter) 20.
7. Filter element accuracy: less than 5μm
8. Pressure control: (PID) open loop/closed loop.
9. Inverter power: 4KW
10. Fuel control temperature: 40±2 degrees.
11. Overall machine size (length×width×height) (mm): 1380×950×1400
12. Weight: 300 kg
