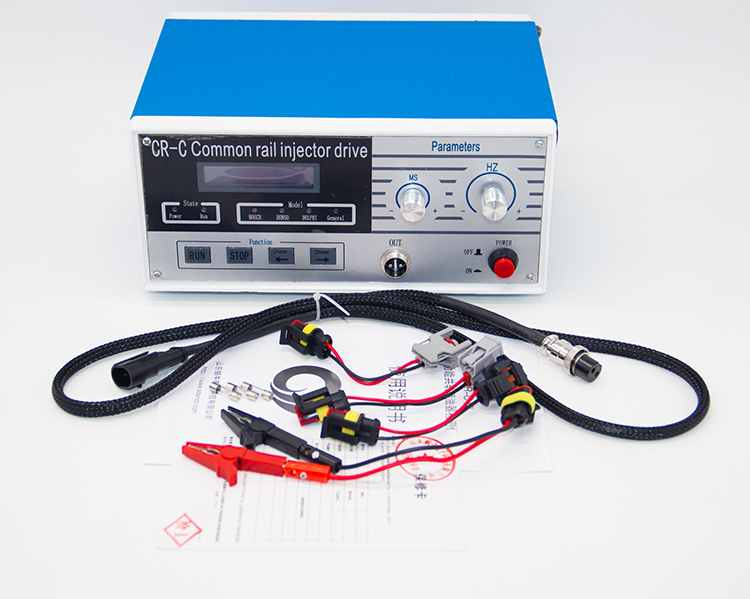

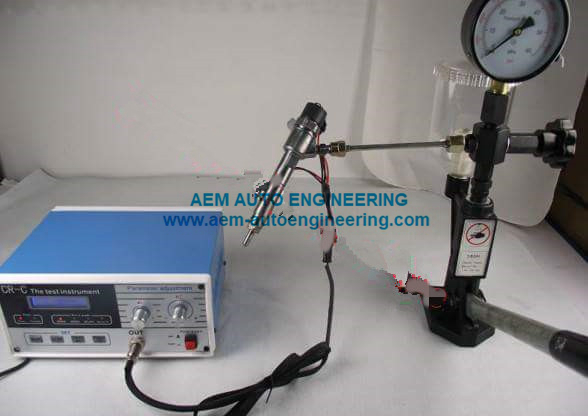

CR-C Multifunctional Common Rail Injector Tester

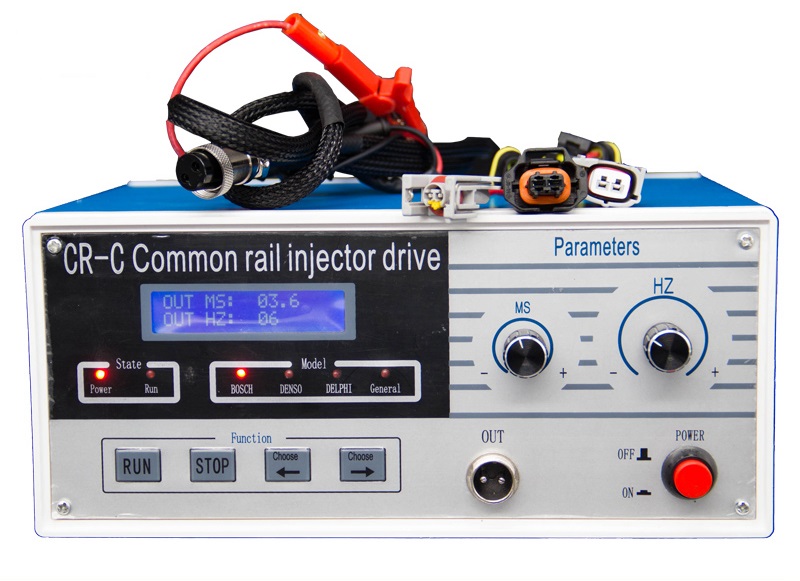

CR-C Common Rail Injector Drive
Germany imported PWM control chip CR-C multifunctional common rail fuel injector tester,can accurate imitation of ECU driving signal for each work condition. Injector,injection,such as pre discharge point,full load conditions.Can drive a variety of brands of injector.Bosch.Delphi.Denso common rail injector.
CR-C multifunctional common rail fuel injector tester
Using the simple operation,can meetthe detection of common rail injector combination and ordinary nozzle
Tester,To reduce the investment threshold of repair
Epuipment.The detector has the advantages fo small
Size and portability can provide customers the way
Detection and repair of common rail injector.can greatly improve work efficiency.
The instrument parameters
Product type:CR-C multi function of common rail injector
Test range:the atomization effect,pre injection,the disch;point full load point.
Suitable for:Bosch ,Delphi,Denso ,domestic and common
Power supply:AC110-240V
Working temperature: -30℃~70℃
Dimensions: 110mmX250mmX190mm
The adjustable pulse width:10MS
Adjustalble frequency:30HZ

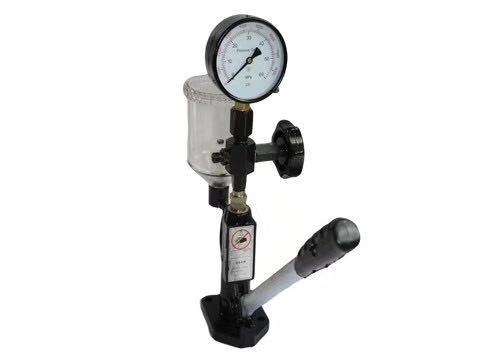

S60H Fuel Injector Nozzle Tester
It is used to adjust and calibrate the injection nozzle opening pressure and to carry out leakage, spray pattern and chatter characteristic tests.
For nozzle size R, S and T.
In basic design with 0-40 Mpa (0-400 bar) pressure gauge.
In conjunction with a specially ordered pressure gauge, this tester can also be used for testing light crude oil injection valves.
