1. Introduction:
The injector tester is used to adjust and verify the fuel injection pump injector assembly pressure, atomization quality, injection angle, and needle valve tightness of the diesel injector assembly. To ensure good power and economy of diesel engines.
Full plastic housing with pressure regulator.
2. Main Technical Parameter:

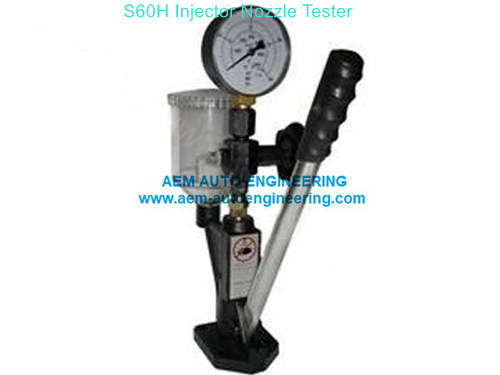

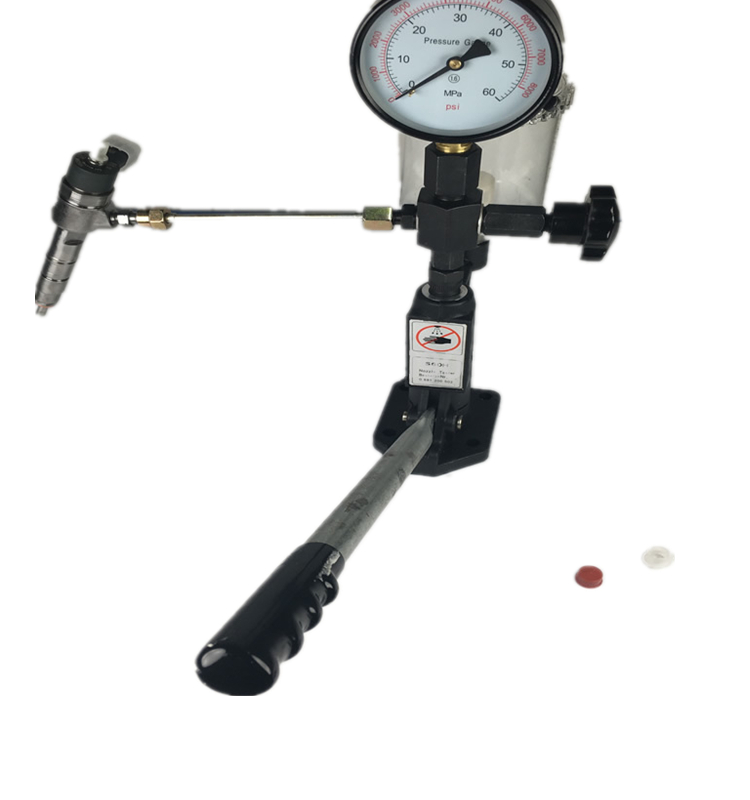

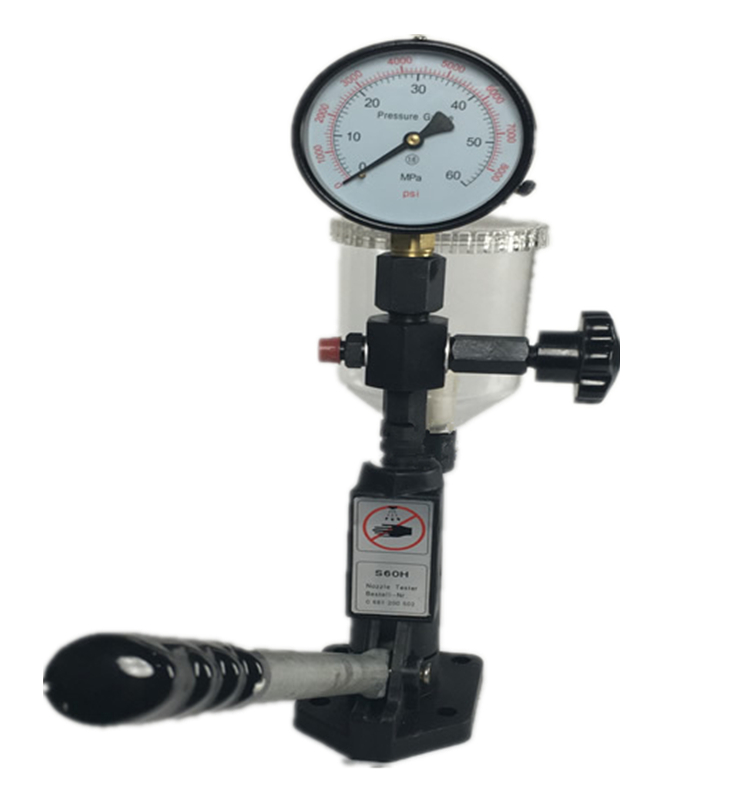

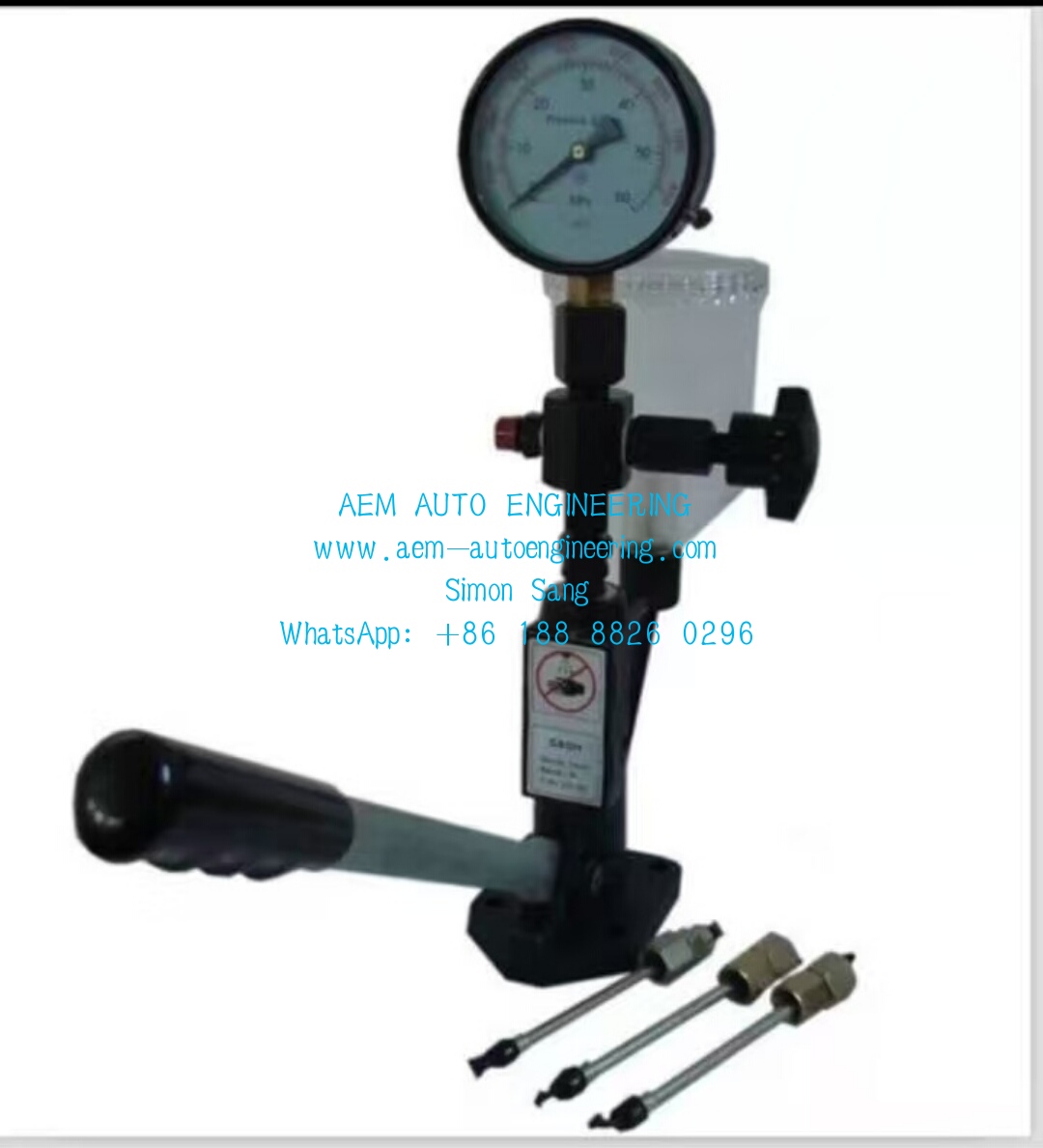

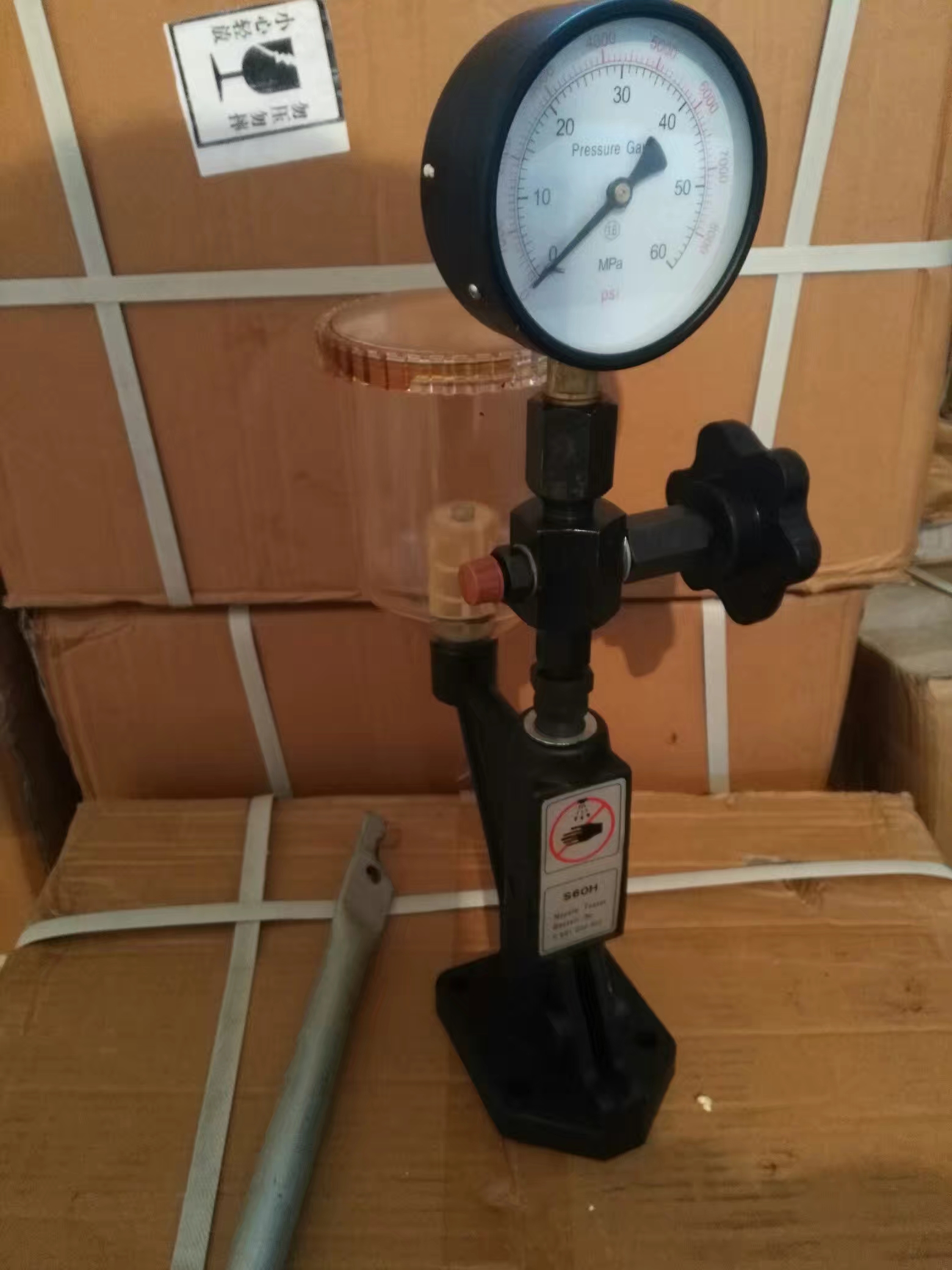

Model: BOSCH S60H Fuel Injector Nozzle Tester
Pressure Range: 0~60Mpa
Overall Dimension: 160mm×100mm×380mm
Oil Tank Capacity: 1L
Max. Test Pressure: 60 Mpa
Net Weight: 4 Kg
3. Main Functions:
(1) Detect the working performance of the injector nozzle
(2) Detect injector opening pressure
(3) Detect the atomization quality of the injector
(4) Detect the spray angle of the injector
(5) Detecting the tightness of the injector
